Current location:Home > BMS protection board Product model:ZLG1F01H
Charge and discharge port:Same port
Board size:200*85mm*25mm
Passive balance:<100mA
Supported string number:8-32S
Sleep power consumption:<100uA
Discharge working current:200A (adjustable)
Optional communication mode:Isolated RS485/CAN, Bluetooth, 4G communication
Temperature detection:4 channels
Application scenarios:Electric motorcycles, AGVs, forklifts, special vehicles

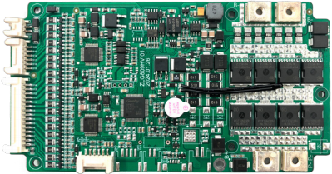

Product model:BMS809H
Charge and discharge port:Same port (with charging and heating control)
Board size:150*80*9mm
Passive balance:<100mA
Supported string number:17-24S
Sleep power consumption:<100uA
Discharge working current:100A (adjustable)
Optional communication mode:Isolated CAN communication
Temperature detection:4 channels
Application scenarios:Electric motorcycles, AGVs, robots

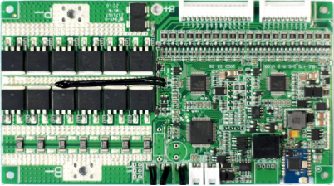

Product model:BMS802H
Charge and discharge port:Same port
Board size:145*80mm*15mm
Passive balance:<100mA
Supported string number:17-24S
Sleep power consumption:<100uA
Discharge working current:70A (adjustable)
Optional communication mode:Isolated RS485/CAN, Bluetooth
Temperature detection:6 channels
Application scenarios:Low-speed electric vehicles, power-assisted vehicles, electric motorcycles, communication power supplies

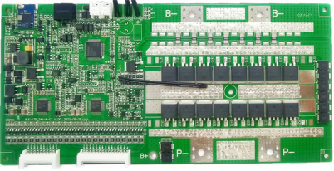

Product model:BMS1F02H
Charge and discharge port:Same port
Board size:215*100*15mm
Passive balance:<100mA
Supported string number:17-24S
Sleep power consumption:<100uA
Discharge working current:100A (adjustable)
Optional communication mode:Isolation RS485/CAN, Bluetooth
Temperature detection:6 channels
Application scenarios:Low-speed electric vehicles, power-assisted vehicles, electric motorcycles, communication power supplies

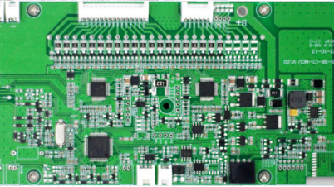

Product model:BMS1F01H
Charge and discharge port:Same port
Board size:200*85mm*25mm
Passive balance:<100mA
Supported string number:17-24S
Sleep power consumption:<100uA
Discharge working current:150A (adjustable)
Optional communication mode:Isolation RS485/CAN, Bluetooth
Temperature detection:6 channels
Application scenarios:RV energy storage, outdoor power supply, electric motorcycle, communication power supply
Product model:ZLG801L
Charge and discharge port:Same port
Board size:145*75*16mm
Passive balance:<100mA
Supported string number:8-16S
Sleep power consumption:<100uA
Discharge working current:80A (adjustable)
Optional communication mode:Isolated RS485/CAN, Bluetooth, 4G communication
Temperature detection:4 channels
Application scenarios:Low-speed electric vehicles, electric motorcycles, AGVs, robots, rental battery replacement
