Product Model：ZLG805EH

Cell Series Supported：17-24S

Product Size：136*80*16mm

Discharge Current：80A（可调）

Temperature Protection：6路

Communication：隔离RS485/CAN

Charge/Discharge Port：同口 Same port

Balance Current：50-100MA

Sleep Mode：50-100uA

Low-voltage Switch：√

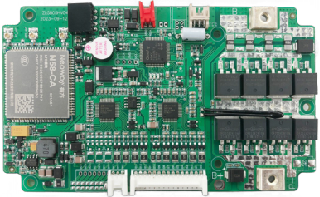

Product model:ZLG805H

Charge and discharge port:Same port

Board size:136*80*20mm

Passive balance:<100mA

Supported string number:17-24S

Sleep power consumption:<100uA

Discharge working current:80A (adjustable)

Optional communication mode:Isolated RS485/CAN, Bluetooth, 4G communication

Temperature detection:4 channels

Application scenarios:Low-speed electric vehicles, electric motorcycles, AGVs, robots, energy storage

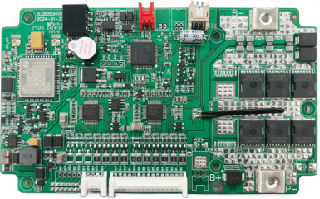

Product model:ZLG805DH

Charge and discharge port:Same port (with charging and heating control)

Board size:136*80*20mm

Passive balance:<100mA

Supported string number:17S-24S

Sleep power consumption:<100uA

Discharge working current:100A (adjustable)

Optional communication mode:Isolated RS485/CAN, Bluetooth, 4G communication

Temperature detection:4 channels

Application scenarios:Low-speed electric vehicles, electric motorcycles, AGVs, robots, rental battery replacement

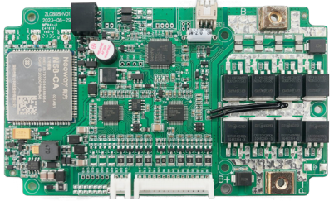

Product model:ZLG808H

Charge and discharge port:Same port

Board size:136*80*20mm

Passive balance:<100mA

Supported string number:17-24S

Sleep power consumption:<100uA

Discharge working current:80A (adjustable)

Optional communication mode:Isolation one-line communication, Uart communication, 4G communication

Temperature detection:4 channels

Application scenarios:Low-speed electric vehicles, electric motorcycles, AGVs, robots, rental battery replacement

Product model:ZLG804H

Charge and discharge port:Same port

Board size:100*139*12mm

Passive balance:<100mA

Supported string number:20S

Sleep power consumption:<100uA

Discharge working current:80A (adjustable)

Optional communication mode:4G communication, isolation RS485/CAN

Temperature detection:4 channels

Application scenarios:Low-speed electric vehicles, electric motorcycles, AGVs, robots, energy storage

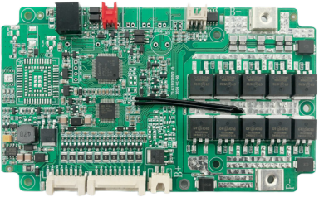

Product model:ZLG1F02H

Charge and discharge port:Same port (with charging and heating control)

Board size:136*80*20mm

Passive balance:<100mA

Supported string number:8-17S

Sleep power consumption:<100uA

Discharge working current:80A (adjustable)

Optional communication mode:Isolated RS485/CAN, Bluetooth, 4G communication line

Temperature detection:4 channels

Application scenarios:Low-speed electric vehicles, electric motorcycles, AGVs, robots, rental battery replacement
