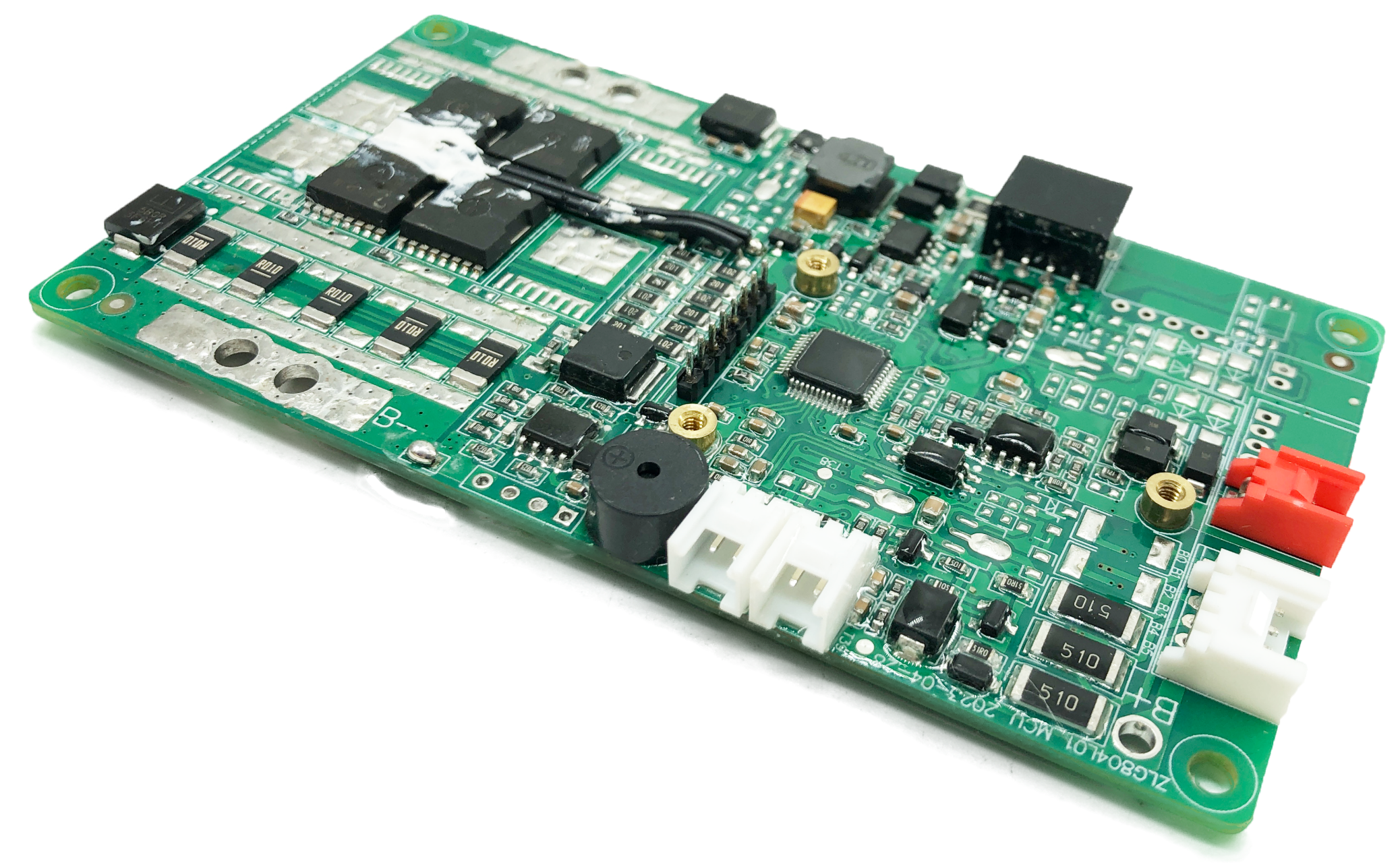

ZLG804L

* Supports RS485/UART interfaces and Bluetooth expansion, with heating function support;

* Support host computer, Bluetooth applet, APP detection data;

* It has multiple software protection functions such as over voltage, over current, over discharge, over temperature, anti-reverse connection and short circuit, Secondary protection (optional);

* Built-in high-precision SOC algorithm, accurately and effectively detect the real state of the battery

* Software parameters can be customized

National Service Hotline
400-0755-166
Parameter
Product ModelZLG804L
Cell Series Supported3-5S
Product Size110*60*18mm
Discharge Current80A(可调)
Temperature Protection3路
Communication同时支持2路RS485,支持RS232
Charge/Discharge Port同口
Balance Current50-100MA
Sleep Mode50-100uA
